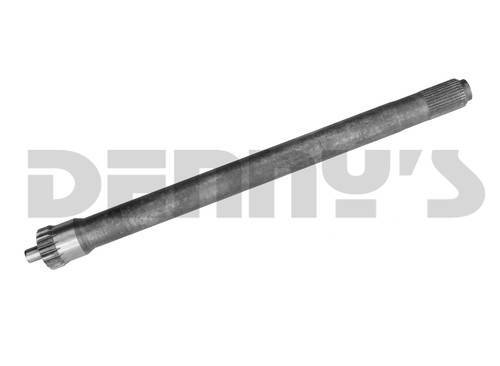

Dana Spicer 49490 Intermediate Shaft 18 Spline at Disconnect 32 spline at Diff fits Passenger Side 2000, 2001, 2002 DODGE Ram 2500, 3500 with Dana 60 Disconnect front axle

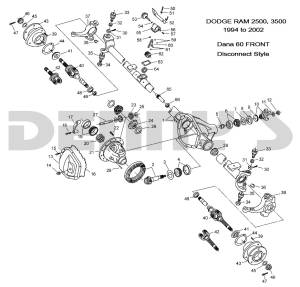

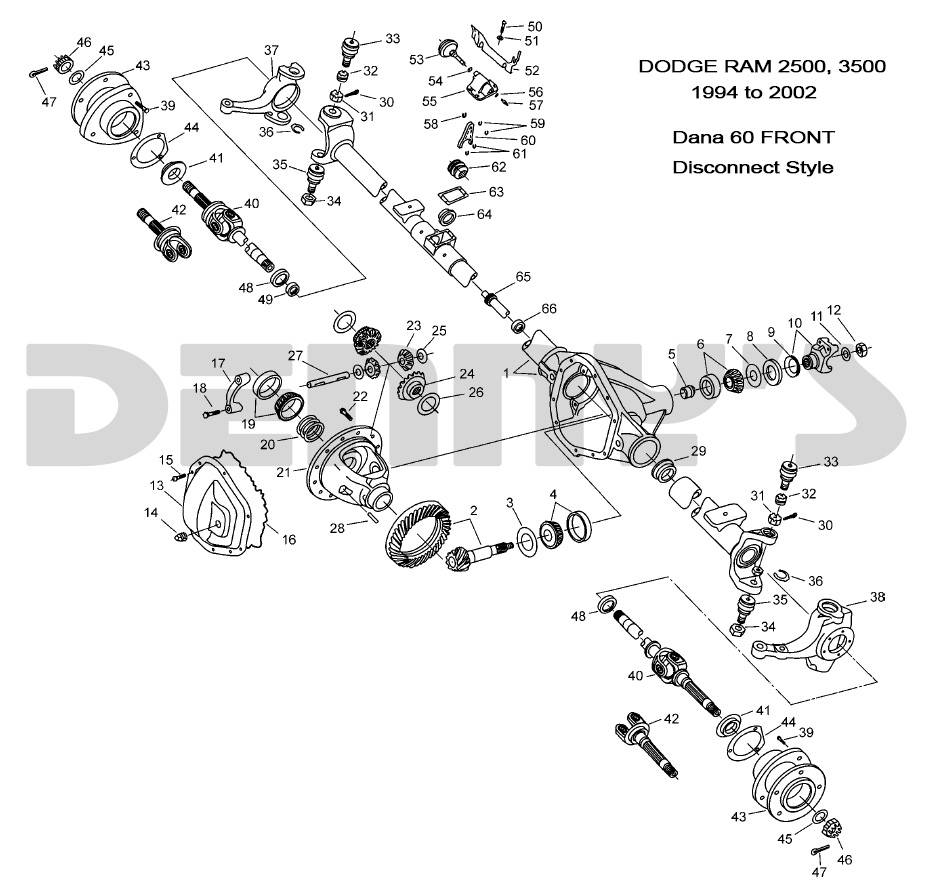

Diagram Number: 65
49490
Dana Spicer 49490
18 Spline Intermediate Shaft - Passenger Side
DODGE Ram 2500, 3500 with Dana 60 Disconnect front axle
- Fits 2000, 2001, 2002
- Connects the Disconnect Coupler to Differential Side Gear
- A = 19.77 inches
- B = 1.90 inches diameter
- 18 Splines at Disconnect Coupler
- C = 0.93 inches spline length
- D = 1.37 inches diameter
- 32 Splines at Differential Side Gear
- E = 2.0 inches spline length
- Passenger Side
Not Available
Pricing:
$155.94
Description
Dana Spicer 49490
18 Spline Intermediate Shaft - Passenger Side
DODGE Ram 2500, 3500 with Dana 60 Disconnect front axle
- Fits 2000, 2001, 2002
- Connects the Disconnect Coupler to Differential Side Gear
- A = 19.77 inches
- B = 1.90 inches diameter
- 18 Splines at Disconnect Coupler
- C = 0.93 inches spline length
- D = 1.37 inches diameter
- 32 Splines at Differential Side Gear
- E = 2.0 inches spline length
- Passenger Side
Details
- 49490
- 49490
- Spicer
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W4.0000” x H4.0000” x L20.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
