Ford Driveshafts and Driveline Parts > Mustang 1964-2004 Driveshafts and Driveline Parts > U-Joints

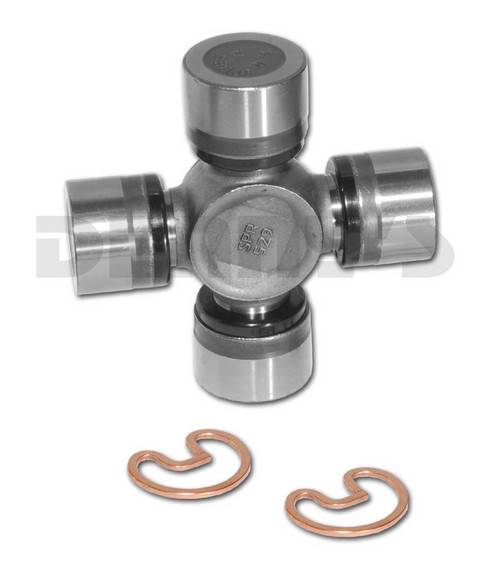

Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint
Part Number:
5-7439X


UPC:
023913126278
 Your Cost $22.45
STATUS:  IN STOCK

Dana Spicer 5-7439X

1310 Series NON Greaseable Universal Joint...FORD Mustang Rear Universal Joint.

  • For use at rear of 1310 series Ford Mustang Driveshaft where 1.125 inch cap diameter is required to fit Ford 8 inch or 9 inch Rear end pinion yoke.
  • Also called Ford Big Cap u-joint
  • Same as obsolete Dana Spicer 5-1201X
Spicer
Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint
Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $22.45

Dana Spicer 5-7439X

1310 Series NON Greaseable Universal Joint...FORD Mustang Rear Universal Joint.

  • For use at rear of 1310 series Ford Mustang Driveshaft where 1.125 inch cap diameter is required to fit Ford 8 inch or 9 inch Rear end pinion yoke.

Dimensions:

  • A = 3.219 inches
  • B = 3.219 inches
  • C = 2 bearing caps are 1.0625 inch diameter to press into driveshaft
  • D = 2 bearing caps are 1.125 inch diameter to fit rear end pinion yoke
  • Outside snap rings to lock into driveshaft yoke
  • Fits 1310 series Ford tab style pinion yokes typically found on Ford 8 inch and Ford 9 inch rear ends.

Notes:

  • Same as obsolete Dana Spicer 5-1201X
  • Requires u-bolt set part number 2-94-58X  ...  see bottom of this page


image/jpeg
Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint

Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint

You May Also Need These Parts to Complete the Job

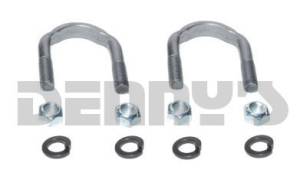

Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke
Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke
Part#: 2-94-58X
$6.85
