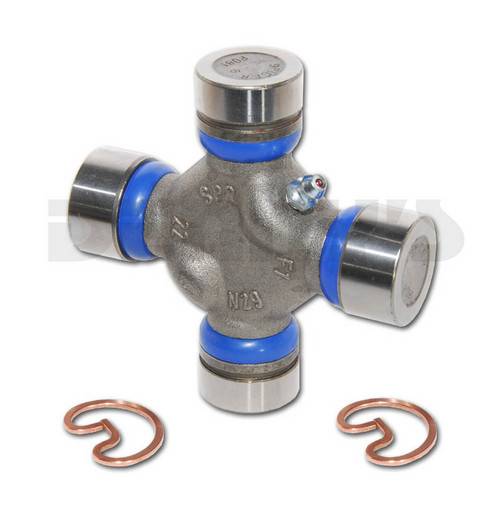

DANA SPICER 5-1204X - Universal Joint 1330 Series FORD 1.125 Bearing Caps

SKU: 5-1204X

DANA SPICER 5-1204X

1330 Series Spicer Greaseable Universal Joint

Fits ALL FORD (Big Cap) applications that require (2) 1.062 and (2) 1.125 inch diameter bearing caps

Pricing: $24.95

Description

DANA SPICER 5-1204X

1330 Series Spicer Greaseable Universal Joint

Fits ALL FORD (Big Cap) applications that require (2) 1.062 and (2) 1.125 inch diameter bearing caps

Commonly found on

Ford Truck manual transmission bolt on yokes
Ford 4x4 transfer case bolt on yokes
Ford 4x4 front differential pinion yokes
Ford car and truck Rear End PINION YOKES
For use at rear of FORD Mustang driveshaft where 1.125 cap diameter bearing cap is required to fit Ford 8.8 or Ford 9 inch u-bolt style pinion yoke.

Dana Spicer 5-1204X

GREASEABLE U-Joint....Grease Fitting in body of u-joint
1330 series dimensions
- 3.625 inches wide in both directions
- 2 bearing caps are 1.0625 inch diameter
- 2 bearing caps are 1.125 inch diameter
- Outside snap rings

DO NOT use on 1330 driveshaft with 1330 flat flange yoke.

If you have a 1330 series flat flange yoke on your driveshaft then you will need SPICER 5-1330X
