Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series fits 1974 to 1993 DODGE 4X4 Front Driveshaft comes with NON GREASABLE U-Joints
Part Number:
6653305CV


UPC:
Your Cost $232.00
STATUS:  IN STOCK - FREE SHIPPING

6653305CV

Double Cardan Assembly to replace original equipment front driveshaft CV on 1974 to 1993 DODGE and PLYMOUTH 4x4 3R Series CV joint.  Complete package includes all the parts to replace your worn out CV.

Spicer/Neapco
6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series fits 1974 to 1993 DODGE 4X4 Front Driveshaft comes with NON GREASABLE U-Joints
6653305CV GM 3R Double Cardan CV Head assemby with additional Spicer 5-795X U-joint
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $232.00

6653305CV

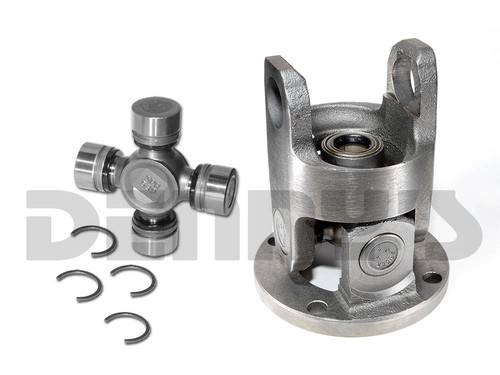

Double Cardan Assembly to replace original equipment front driveshaft CV on 1974 to 1993 DODGE and PLYMOUTH 4x4 3R Series CV joint.  Complete package includes all the parts to replace your worn out CV.   This unit is fully assembled and ready to install onto your existing driveshaft.  It's as easy as changing one u-joint.  Bolt pattern for mounting to transfer case flange is 4 1/4 inches (4.250 inches) measured diagonally and the pilot hole in the center of the flat flange is 3 1/8 inches (3.125 inches).   It has 4 equally spaced holes that measure 3 inches from center of hole to center of hole.

  • Comes with (2) Spicer 5-795X NON Greasable 3R Series Universal Joints
  • Comes with (1) NEAPCO 3R Series Center "H" Yoke
  • Comes with (1) NEAPCO 3R Series CV Flange yoke with ball socket parts installed
  • CV Flange, "H" Yoke and one u-joint assembled....all you need to do is install one u-joint into your CV Ball yoke to install this assembly
6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series fits 1974 to 1993 DODGE 4X4 Front Driveshaft comes with NON GREASABLE U-Joints

6653305CV GM 3R Double Cardan CV Head assemby with additional Spicer 5-795X U-joint

You May Also Need These Parts to Complete the Job

4289-716 Set of 4 grade 8 CV Flange Bolts 7/16 - 14 coarse thread and 4 lock washers
$5.45
