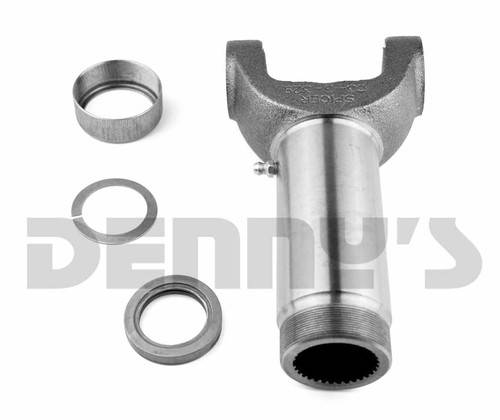

DANA SPICER 3-3-2471KX Slip Yoke 1350 Series 1.375 x 32 pline 6.625 inches

DANA SPICER 3-3-2471KX

1350 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.377
• Number of Splines = 31/32
• Series = 1350
• Lock up style = OUTSIDE
• Universal Joint Width = 3.625
• D - Universal Joint Bore = 1.187
• Dust Cap Part Number = D3F
  • Dust Cap Style = 3 PIECE SCREW ON
• F - Center of u-joint bore to plug = 1.188
• J - Center of u-joint bore to End of Slip yoke = 6.625
