Dana Spicer 5-793X NON GREASABLE fits 2003 to 2006 Jeep TJ Rubicon and Unlimited 1330/3R Series Front and Rear Driveshaft Universal Joint at Pinion Yoke

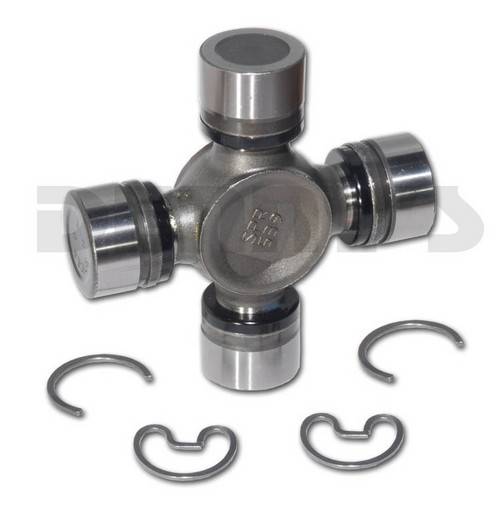

DANA SPICER 5-793X

• Jeep TJ Rubicon FRONT Driveshaft Universal Joint at Pinion Yoke
  • 2003, 2004
• Jeep TJ Rubicon REAR Driveshaft Universal Joint at Pinion Yoke
  • 2003, 2004
• Jeep TJ Rubicon and Unlimited FRONT Driveshaft Universal Joint at Pinion Yoke
  • 2005, 2006
• Jeep TJ Rubicon and Unlimited REAR Driveshaft Universal Joint at Pinion Yoke
  • 2005, 2006

NON GREASEABLE U-Joint

• 5-793X is a 1330 to 3R Series Combination u-joint


DIMENSIONS

• 1330 series fits into pinion yoke
  • 3 5/8 inches wide cap to cap
  • 1.062 bearing caps

• 3R series fits into driveshaft
  • 2.562 inches (2-9/16) wide between inner surfaces where "C" clips lock in
  • 1.125 bearing caps

  • Inside "C" clip locks


CHECK LISTINGS in this CHART for the Correct Universal Joint Part Number for your application

• For REAR DRIVESHAFT UNIVERSAL JOINTS
  • It is VERY IMPORTANT that you carefully look at and measure your original u-joints to be sure you are ordering the correct part numbers
  • In addition to what is listed in the chart below you may also have a rear driveshaft that requires 1330 series universal joints.  See part numbers 5-213X and 5-1330X
