C809-3280 Right Axle Assembly 2009 ONLY DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1485 series
C809-3280
Part number: C809-3280
- Fits model year 2009 ONLY ..... Dodge Ram 2500 and 3500 with AAM 9.25 inch front end
- OEM Dodge 9.25 inch AAM American Axle

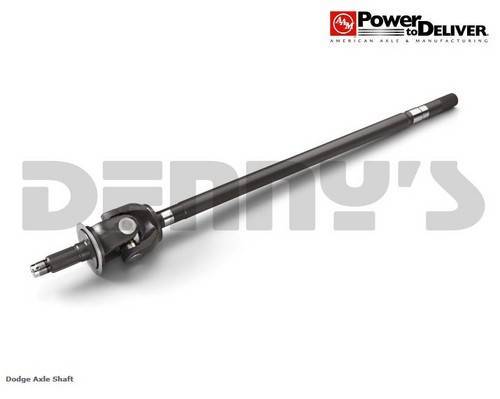

- RIGHT AXLE ASSEMBLY - Passenger side (LONG SIDE)
- Complete and fully assembled with Outer Axle, Axle U-joint and Inner Axle
- 1485 Series
- 35 Spline OUTER
- 33 Spline INNER
- OEM Numbers 68055220AA, 40052461
Not Available
Pricing:
$425.95
Description
Part number: C809-3280
FULLY ASSEMBLED Ready to Install
- OEM Dodge 9.25 inch AAM American Axle
- RIGHT AXLE ASSEMBLY - Inner, Outer and U-Joint for PASSENGER side (LONG SIDE)
- Fits 2009 ONLY Dodge Ram 2500 and 3500 with AAM 9.25 inch front end
- OEM Numbers 68055220AA, 40052461
DIMENSIONS:
- 1485 SERIES
- 35 spline OUTER
- 33 spline INNER
- A = 37.97 mm (1.495 inches)
- A1 = 69.25 mm (2.726 inches)
- B = 36.0 mm (1.417 inches)
- C = 187.47 mm (7.380 inches)
- D = 966.8 mm (38.062 inches)
- E = 1154.3 mm (45.44 inches)
Details
- C809-3280
- C809-3280
- AAM
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 34.0 lbs.
- W9.0000” x H9.0000” x L45.0000”
