DANA SPICER 6-3-3541KX Slip Yoke 1710 Series

DANA SPICER 6-3-3541KX

1710 Series Slip Yoke

• Spline/Hole Outside Diameter = 2.500
• Number of Splines = 15/16
• Series = 1710
• Lock up style = BEARING PLATE
• Universal Joint Width = 6.094
• D - Universal Joint Bore = 1.938
• Dust Cap Part Number = 6.3-86-18
  • Dust Cap Style = 1 PIECE SCREW ON

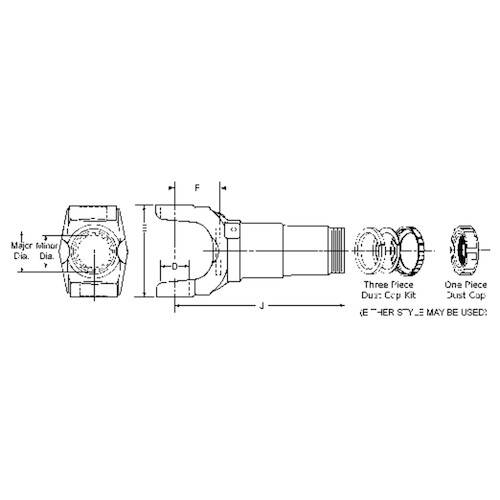

• F - Center of u-joint bore to plug = 3.219
• J - Center of u-joint bore to End of Slip yoke = 12.719
• Special Notes:  Relief valve in plug
