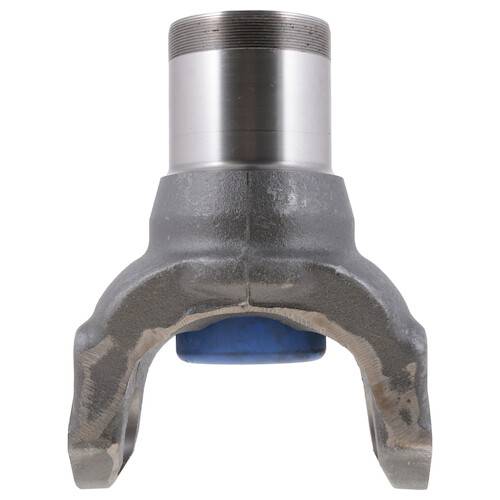

DANA SPICER 6.5-3-1431KX Slip Yoke 1810 Series
6.5-3-1431KX
DANA SPICER 6.5-3-1431KX
1810 Series Slip Yoke
Availability: THIS ITEM IS
OBSOLETE AND NO
LONGER AVAILABLE
Description
DANA SPICER 6.5-3-1431KX
1810 Series Slip Yoke
- Spline/Hole Outside Diameter = 3.000
- Number of Splines = 16
- Series = 1810
- Lock up style = BEARING PLATE
- Universal Joint Width = 7.547
- D - Universal Joint Bore = 1.938
- Dust Cap Part Number = 6.5-86-38
- Dust Cap Style = 1 PIECE SCREW ON
- F - Center of u-joint bore to plug = 1.562
- J - Center of u-joint bore to End of Slip yoke = 8.938
Shipping Information
- Item Requires Shipping
- 23.0 lbs.
- W5.0000” x H3.0000” x L11.0000”
