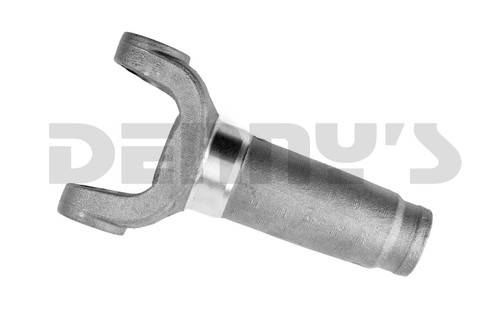

DANA SPICER 3-3-6701X Slip Yoke 1410 Series

DANA SPICER 3-3-6701X

1410 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.463
• Number of Splines = 21/22
• Series = 1410
• Lock up style = OUTSIDE
• Universal Joint Width = 4.188
• D - Universal Joint Bore = 1.188
• Boot Kit Part Number for this yoke = 212094X...Optional Boot 212010X
• F - Center of u-joint bore to plug = 1.161
• J - Center of u-joint bore to End of Slip yoke = 7.311
• Special Notes:  Optional Boot 212010X
