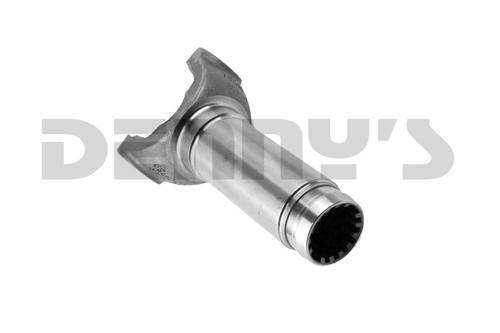

DANA SPICER 3-3-5461X Slip Yoke 1350 Series

DANA SPICER 3-3-5461X

1350 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.500
• Number of Splines = 14/16
• Series = 1350
• Lock up style = OUTSIDE
• Universal Joint Width = 3.625
• D - Universal Joint Bore = 1.187
• Boot Kit Part Number for this yoke = 211916X
• F - Center of u-joint bore to plug = 1.188
• J - Center of u-joint bore to End of Slip yoke = 7.312
• Special Notes:  ORDER BOOT SEPARATELY
