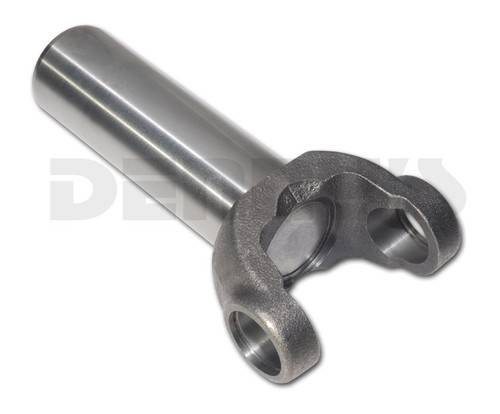

DANA SPICER 3-3-5431X Slip Yoke 1350 Series 31 splines 1.885 barrel diameter

DANA SPICER 3-3-5431X OBSOLETE - Replaced by Neapco N3-3-5431X

1350 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.390
• Number of Splines = 30/31
• Series = 1350
• Lock up style = OUTSIDE
• Universal Joint Width = 3.625
• D - Universal Joint Bore = 1.188
• J - Center of u-joint bore to End of Slip yoke = 7.310
• R - Barrel Outside Diameter = 1.885
