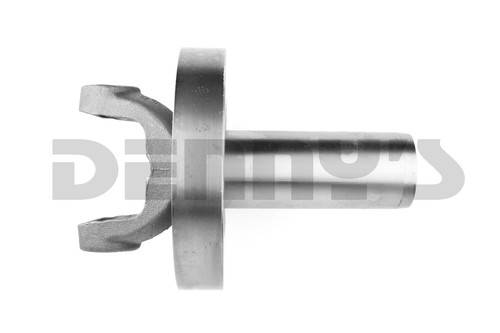

DANA SPICER 3-3-4131X Slip Yoke 1410 Series

DANA SPICER 3-3-4131X

1410 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.615
• Number of Splines = 30/31
• Series = 1410
• Lock up style = OUTSIDE
• Universal Joint Width = 4.187
• D - Universal Joint Bore = 1.187
• J - Center of u-joint bore to End of Slip yoke = 8.340
• R - Barrel Outside Diameter = 2.200
• Special Notes:  same as 3-3-4391x except w/vibration dampener
