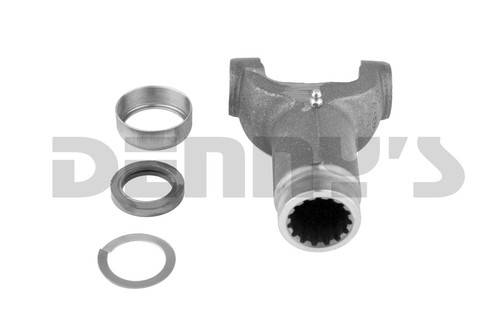

DANA SPICER 3-3-3871KX Slip Yoke 1410 Series

DANA SPICER 3-3-3871KX

1410 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.605
• Number of Splines = 15 INVOLUTE (NOT SQUARE)
• Series = 1410
• Lock up style = OUTSIDE
• Universal Joint Width = 4.187
• D - Universal Joint Bore = 1.187
• Dust Cap Part Number = D4G
  • Dust Cap Style = 3 PIECE SCREW ON
• F - Center of u-joint bore to plug = 1.344
• J - Center of u-joint bore to End of Slip yoke = 5.750
