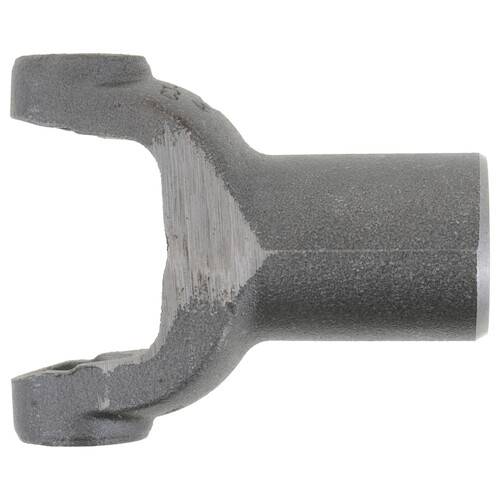

DANA SPICER 3-3-3791X Slip Yoke 1410 Series

DANA SPICER 3-3-3791X

1410 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.654
• Number of Splines = 20
• Series = 1410
• Lock up style = OUTSIDE
• Universal Joint Width = 4.187
• D - Universal Joint Bore = 1.187
• F - Center of u-joint bore to plug = 1.312
• J - Center of u-joint bore to End of Slip yoke = 4.812
• Special Notes:  Hub dia. not ground
