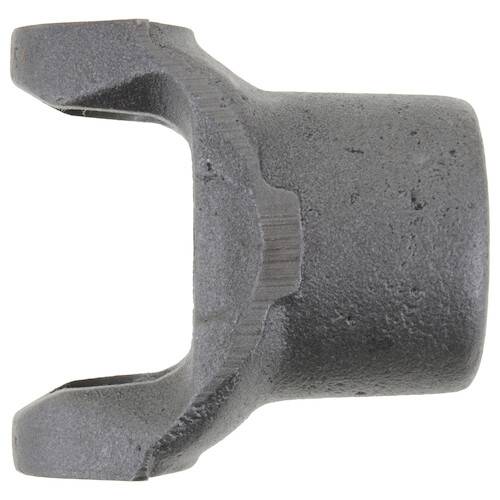

DANA SPICER 3-3-3121X Slip Yoke 1480 Series

DANA SPICER 3-3-3121X

1480 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.784
• Number of Splines = 27
• Series = 1480
• Lock up style = OUTSIDE
• Universal Joint Width = 4.187
• D - Universal Joint Bore = 1.375
• F - Center of u-joint bore to plug = 1.109
• J - Center of u-joint bore to End of Slip yoke = 3.719
• Special Notes:  Hub dia. not ground
