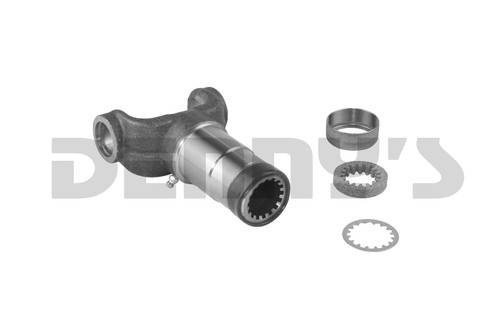

DANA SPICER 3-3-1481KX Slip Yoke 1410 Series

DANA SPICER 3-3-1481KX

1410 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.375
• Number of Splines = 16
• Series = 1410
• Lock up style = OUTSIDE
• Universal Joint Width = 4.187
• D - Universal Joint Bore = 1.187
• Dust Cap Part Number = D3G
  • Dust Cap Style = 3 PIECE SCREW ON
• F - Center of u-joint bore to plug = 1.156
• J - Center of u-joint bore to End of Slip yoke = 5.812
