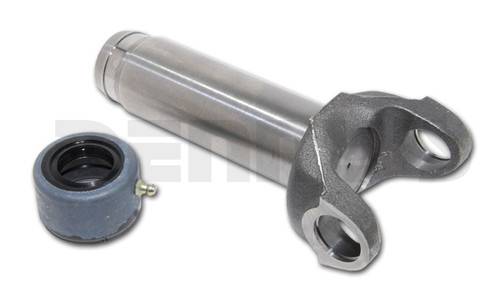

DANA SPICER 2-3-8041KX Slip Yoke 1330 Series

DANA SPICER 2-3-8041KX

1330 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.375
• Number of Splines = 16
• Series = 1330
• Lock up style = OUTSIDE
• Universal Joint Width = 3.625
• D - Universal Joint Bore = 1.062
• Dust Cap Part Number = 211121X
  • Dust Cap Style = 1 PIECE PRESS ON
• F - Center of u-joint bore to plug = 1.000
• J - Center of u-joint bore to End of Slip yoke = 7.500
