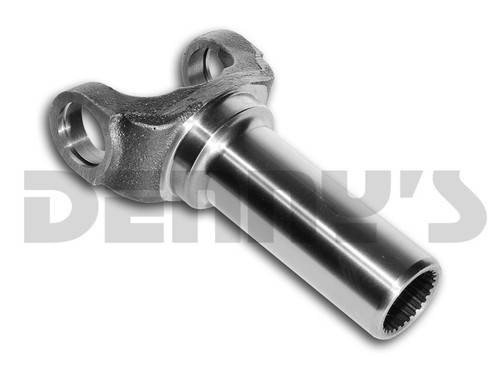

DANA SPICER 2-3-6081X Slip Yoke 1310 Series

DANA SPICER 2-3-6081X

1310 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.176
• Number of Splines = 26/27
• Series = 1310
• Lock up style = OUTSIDE
• Universal Joint Width = 3.219
• D - Universal Joint Bore = 1.062
• J - Center of u-joint bore to End of Slip yoke = 5.469
• R - Barrel Outside Diameter = 1.500
