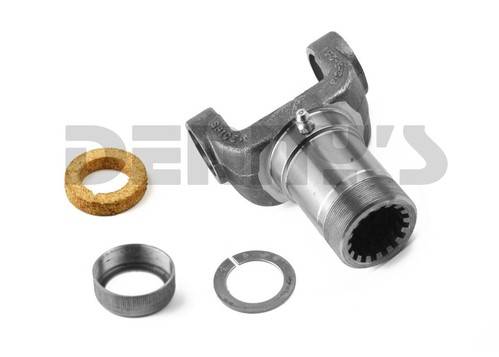

DANA SPICER 2-3-258KX Slip Yoke 1310 Series

DANA SPICER 2-3-258KX

1310 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.250
• Number of Splines = 16
• Series = 1310
• Lock up style = OUTSIDE
• Universal Joint Width = 3.219
• D - Universal Joint Bore = 1.062
• Dust Cap Part Number = D2B
  • Dust Cap Style = 3 PIECE SCREW ON
• F - Center of u-joint bore to plug = 1.000
• J - Center of u-joint bore to End of Slip yoke = 4.125
