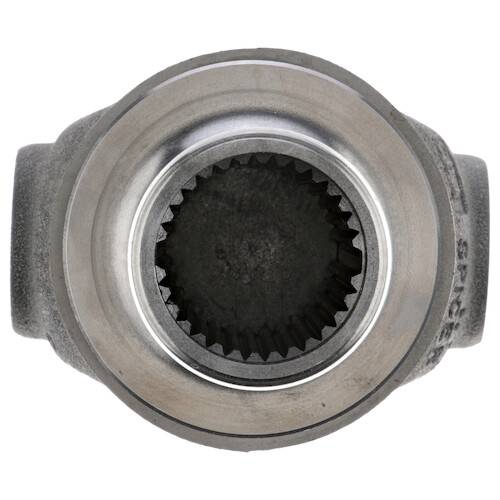

DANA SPICER 2-3-15871X Slip Yoke 1330 Series

DANA SPICER 2-3-15871X

1330 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.378
• Number of Splines = 30/32
• Series = 1330
• Lock up style = OUTSIDE
• Universal Joint Width = 3.625
• D - Universal Joint Bore = 1.062
• J - Center of u-joint bore to End of Slip yoke = 6.102
• R - Barrel Outside Diameter = 1.731
• Counterbore Diameter = 1.375
• Counterbore Depth = 0.393
