DANA SPICER 2-3-14261X Slip Yoke 1330 Series
2-3-14261X
DANA SPICER 2-3-14261X
1330 Series Slip Yoke
Not Available
Pricing:
$131.80
Description
DANA SPICER 2-3-14261X
1330 Series Slip Yoke

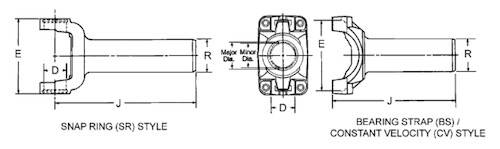

- Spline/Hole Outside Diameter = 1.284
- Number of Splines = 29/30
- Series = 1330
- Lock up style = OUTSIDE
- Universal Joint Width = 3.625
- D - Universal Joint Bore = 1.062
- J - Center of u-joint bore to End of Slip yoke = 8.030
- R - Barrel Outside Diameter = 1.680
- Counterbore Diameter = 1.440
- Counterbore Depth = 1.440
- Special Notes: OEM CHRYSLER ONLY
Details
- 2-3-14261X
- 2-3-14261X
- Spicer
- Temporarily Not Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W5.0000” x H3.0000” x L10.0000”
