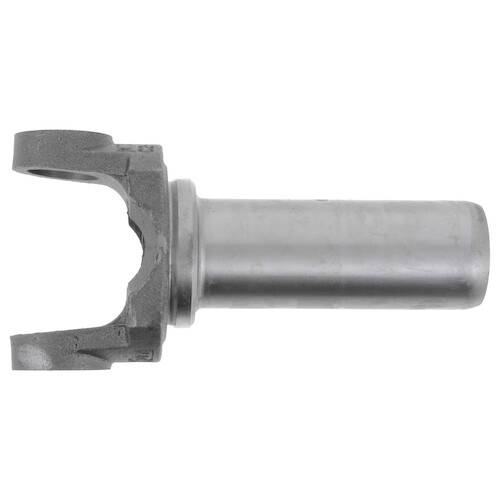

DANA SPICER 2-3-14001X Slip Yoke 1310 Series

DANA SPICER 2-3-14001X

1310 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.284
• Number of Splines = 28/30
• Series = 1310
• Lock up style = OUTSIDE
• Universal Joint Width = 3.219
• D - Universal Joint Bore = 1.062
• J - Center of u-joint bore to End of Slip yoke = 6.266
• R - Barrel Outside Diameter = 1.652
• Counterbore Diameter = 1.320
• Counterbore Depth = 0.390
