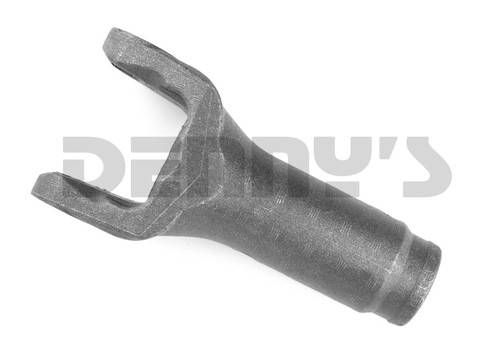

DANA SPICER 2-3-12881X Slip Yoke 1310 Series 15/16 splines 6.724 inches

DANA SPICER 2-3-12881X

1310 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.375
• Number of Splines = 15/16
• Series = 1310
• Lock up style = OUTSIDE
• Universal Joint Width = 3.219
• D - Universal Joint Bore = 1.062
• Boot Kit Part Number for this yoke = 211916X ORDER SEPARATELY
• F - Center of u-joint bore to plug = 1.417
• J - Center of u-joint bore to End of Slip yoke = 6.724
