DANA SPICER 2-3-10521X Slip Yoke 1210 Series
2-3-10521X
DANA SPICER 2-3-10521X
1210 Series Slip Yoke
Not Available
Pricing:
$79.95
Description
DANA SPICER 2-3-10521X
1210 Series Slip Yoke
- Spline/Hole Outside Diameter = 1.250
- Number of Splines = 14/16
- Series = 1210
- Lock up style = OUTSIDE

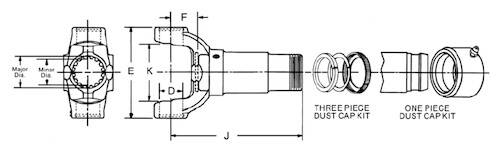

- Universal Joint Width = 2.438
- D - Universal Joint Bore = 1.062
- Dust Cap Part Number = 211256X
- Boot Kit Part Number for this yoke = 211513X ORDER SEPARATELY
- F - Center of u-joint bore to plug = 1.547
- J - Center of u-joint bore to End of Slip yoke = 6.344
Details
- 2-3-10521X
- 2-3-10521X
- Spicer
- Temporarily Not Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W5.0000” x H3.0000” x L8.0000”
