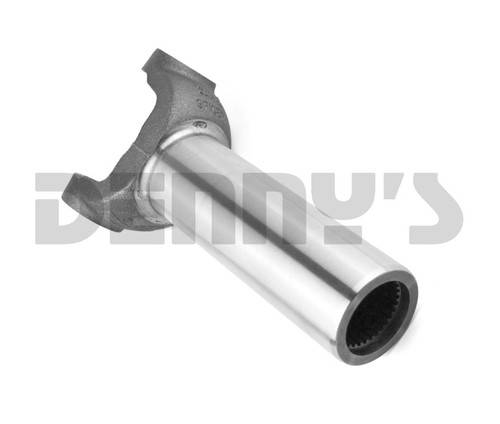

Dana Spicer 2-3-10791X Transfer Case Slip yoke 1330 series 8 in. cl to end 32 spline for NP 205, 208, 241, 243, 246, 261, 263
2-3-10791X
DANA SPICER 2-3-10791X
Transfer Case Slip Yoke 32 spline for New Process NP 205, 208, 241, 243, 246, 261, 263
- 1330 series
- Length to center of u-joint... Dimension #1 = 8 inches
Limited Supply: only 3 remaining
Pricing:
$286.69
Description
DANA SPICER 2-3-10791X
Transfer Case Slip Yoke 32 spline for New Process NP 205, 208, 241, 243, 246, 261, 263
- 1330 Series
- Length to center of u-joint... Dimension #1 = 8 inches
- Barrel Diameter... Dimension #2 = 1.885 inches
- Barrel Length... Dimension #3 = 6 inches
- U-joint cap diameter... Dimension #4 = 1 1/16 inches
- U-joint width... Dimension #5 = 3 5/8 inches
- Series... 1330
- Spline count... 32
- Counterbore diameter = 1.410
- Counterbore depth = .220
Details
- 2-3-10791X
- 2-3-10791X
- Spicer
- Available
- New
Categories
- Driveline Parts - Slip Yokes - SLIP YOKES - For 4X4 Transfer Case
- Slip Yokes - SLIP YOKES - For 4X4 Transfer Case - NP205, 208, 241, 243, 246, 261, 263 with 32 SPLINE rear output 1.886 barrel OD
- SLIP YOKES - For 4X4 Transfer Case - NP205, 208, 241, 243, 246, 261, 263 with 32 SPLINE rear output 1.886 barrel OD - 1330 SERIES - OUTSIDE SNAP RINGS
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H5.0000” x L8.0000”
