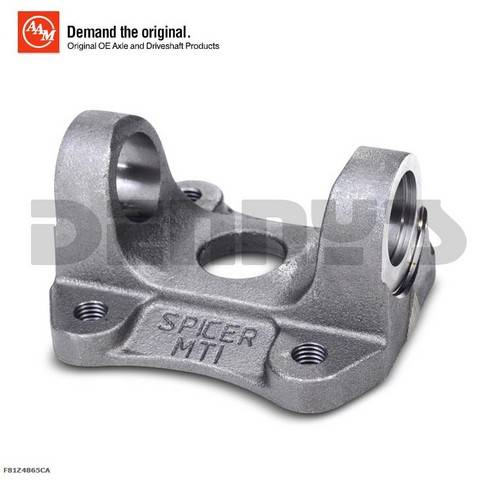

FORD F81Z4865CA Flange Yoke 1410 Series Threaded Mounting Holes 2.680 female pilot Dana Spicer 3-2-1709
F81Z4865CA
FORD F81Z4865CA (Dana Spicer 3-2-1709)
1410 Series Flange Yoke
Limited Supply: only 4 remaining
Pricing:
$92.95
Description
FORD F81Z4865CA (Dana Spicer 3-2-1709)
1410 Series Flange Yoke
- A - Flange or Swing Diameter = 5.352 inches
- B - Bolt Circle Diameter = 4.250 inches
- Bolt Hole Diameter = .470 inches
- Bolt Holes = 4
- Bolt Holes = THREADED
- C - Center Pilot Hole Diameter = 2.680 inches
- Center Pilot = FEMALE
- Series = 1410
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.187 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
- G - Center of u-joint bore to Face of flange = 1.625 inches
- X - 3 inches
- Y - 3 inches
- Special Notes: 12mm threaded holes equally spaced
Details
- F81Z4865CA
- F81Z4865CA
- AAM
- Available
- New
Categories
- Driveline Parts - FLANGE YOKES - FLANGE YOKES - By VEHICLE APPLICATION
- FLANGE YOKES - FLANGE YOKES - By VEHICLE APPLICATION - Ford
- FLANGE YOKES - By VEHICLE APPLICATION - Ford - 1410 Series - Fits 4.187 x 1.187 U-Joint
- Ford - 1410 Series - Fits 4.187 x 1.187 U-Joint - -- 4.25 inch Bolt Circle with 2.680 inch Pilot
- Driveline Parts - FLANGE YOKES
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W4.0000” x H4.0000” x L6.0000”
