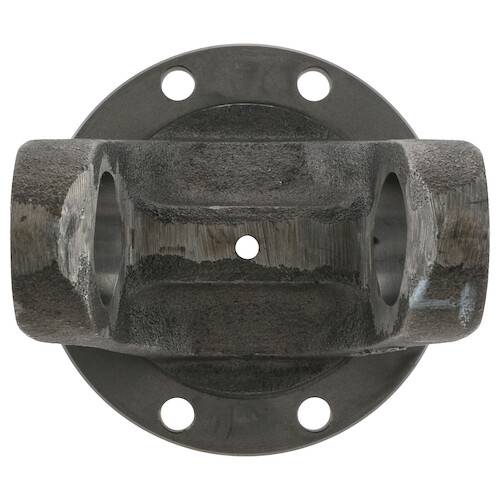

DANA SPICER 90-2-29 Flange Yoke SPL90 Series
Part Number:
90-2-29


UPC:
023913247782
Your Cost $175.92 Sale Price $148.20
You Save $27.72
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

DANA SPICER 90-2-29

SPL90 Series Flange Yoke




Spicer
DANA SPICER 90-2-29 Flange Yoke SPL90 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $175.92 Sale Price $148.20
You Save $27.72

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 90-2-29

SPL90 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.906 inches
  • B - Bolt Circle Diameter = 5.118 inches
    • Bolt Hole Diameter = 0.478 inches
    • Bolt Holes = 8
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 3.544 inches
    • Center Pilot = FEMALE
  • Series = SPL90
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.957 inches
    • D - U-Joint Bearing cap diameter = 1.625 inches
  • G - Center of u-joint bore to Face of flange = 3.281 inches
  • Special Notes: METRIC FLANGE





Heavy duty truck and equipment driveshaft flange yokes at Denny's Driveshafts

DANA SPICER 90-2-29 Flange Yoke SPL90 Series
