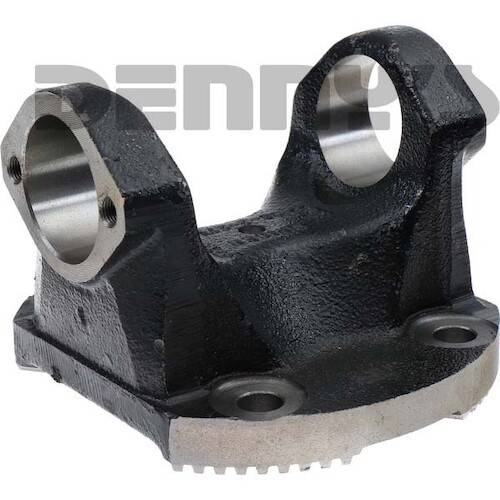

DANA SPICER 6-2-25 Flange Yoke 1710 Series

DANA SPICER 6-2-25

1710 Series Flange Yoke

• A - Flange or Swing Diameter = 7.087 inches
• Bolt Circle Diameter = 5.906 inches
  • Bolt Hole Diameter = 0.590 inches
  • Bolt Holes = 4
  • Bolt Holes = DRILLED
• C - Center Pilot Hole Diameter

  • Center Pilot
• Series = 1710

  • U-Joint Width = 6.094 inches
  • D - U-Joint Bearing cap diameter = 1.938 inches
• G - Center of u-joint bore to Face of flange = 3.268 inches
• Special Notes: Bearing Plate Style ...180 mm flange w/serrated flange face
