DANA SPICER 6-2-15 Flange Yoke 1710 Series
Part #:
6-2-15
Your Cost $270.61

DANA SPICER 6-2-15

1710 Series Flange Yoke




Spicer
DANA SPICER 6-2-15 Flange Yoke 1710 Series

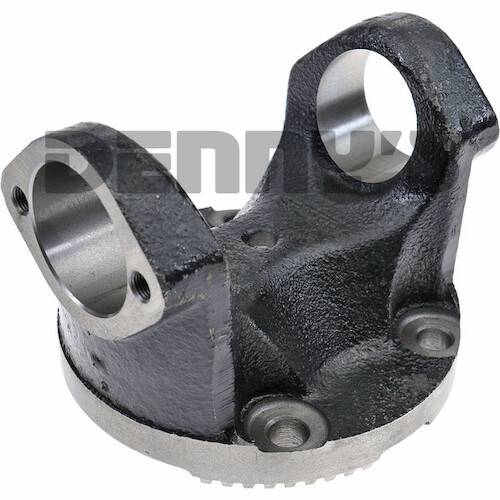

NOT ACTUAL PART - Representative image of bearing plate full round style flange yoke
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT - SPECIAL ORDER
YOUR COST:  $270.61

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 6-2-15

1710 Series Flange Yoke

  • A - Flange or Swing Diameter = 8 inches
  • Bolt Circle Diameter = 5.118 inches
    • Bolt Hole Diameter = 0.472 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter
    • Center Pilot
  • Series = 1710
    • U-Joint Width = 6.094 inches
    • D - U-Joint Bearing cap diameter = 1.938 inches
  • G - Center of u-joint bore to Face of flange = 3.189 inches
  • Special Notes: Bearing Plate Style ..... 150 mm flange w/serrated flange face





Heavy duty truck and equipment driveshaft flange yokes at Denny's Driveshafts

DANA SPICER 6-2-15 Flange Yoke 1710 Series

NOT ACTUAL PART - Representative image of bearing plate full round style flange yoke

You May Also Need These Parts to Complete the Job

DANA SPICER 5-280X Universal joint 1710 Series Bearing Plate Style
$41.58
