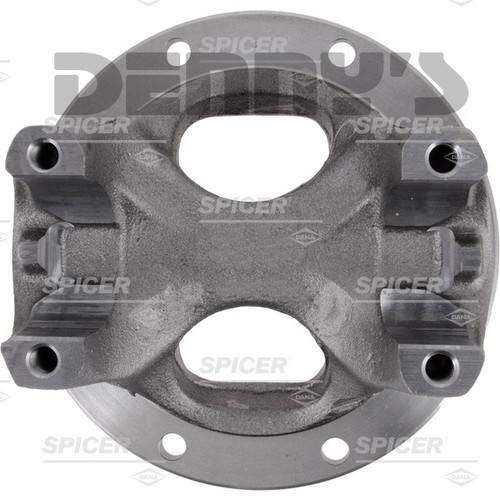

DANA SPICER 5-2-599-1 Flange Yoke 1610 Series Half Round Bearing Strap Style
Part Number:
5-2-599-1


UPC:
Your Cost $205.75
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

DANA SPICER 5-2-599-1

1610 Series Flange Yoke




Spicer
DANA SPICER 5-2-599-1 Flange Yoke 1610 Series Half Round Bearing Strap Style
DANA SPICER 5-2-599-1 Flange Yoke 1610 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $205.75

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 5-2-599-1

1610 Series Flange Yoke

  • A - Flange or Swing Diameter = 6.875 inches
  • B - Bolt Circle Diameter = 6.125 inches
    • Bolt Hole Diameter = 0.375 inches
    • Bolt Holes = 8
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 5.312 inches
    • Center Pilot = MALE
  • Series = 1610
    • U-Joint Width = 5.312 inches
    • D - U-Joint Bearing cap diameter = 1.875 inches
  • G - Center of u-joint bore to Face of flange = 2.750 inches
  • Special Notes: BEARING STRAP HALF ROUND style w/brake pilot.





Heavy duty truck and equipment driveshaft flange yokes at Denny's Driveshafts

DANA SPICER 5-2-599-1 Flange Yoke 1610 Series Half Round Bearing Strap Style

DANA SPICER 5-2-599-1 Flange Yoke 1610 Series

You May Also Need These Parts to Complete the Job

DANA SPICER 5-674X Universal Joint 1610 Series fits HALF ROUND Driveshaft yoke
$73.66
