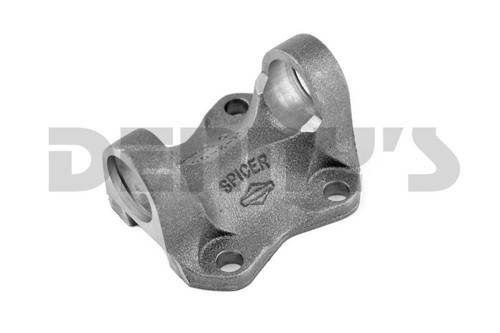

DANA SPICER 2-2-389 Flange Yoke 1310 Series
Part #:
2-2-389
Your Cost $49.36

DANA SPICER 2-2-389

1310 Series Flange Yoke




Spicer
DANA SPICER 2-2-389 Flange Yoke 1310 Series
DANA SPICER 2-2-389 Flange Yoke 1310 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $49.36

DANA SPICER 2-2-389

1310Series Flange Yoke

  • A - Flange or Swing Diameter = 3.875 inches
  • B - Bolt Circle Diameter = 3.125 inches
    • Bolt Hole Diameter = 0.375 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.375 inches
    • Center Pilot = FEMALE
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.375 inches
  • X - inches
  • Y - inches
  • Special Notes:





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-389 Flange Yoke 1310 Series

DANA SPICER 2-2-389 Flange Yoke 1310 Series
