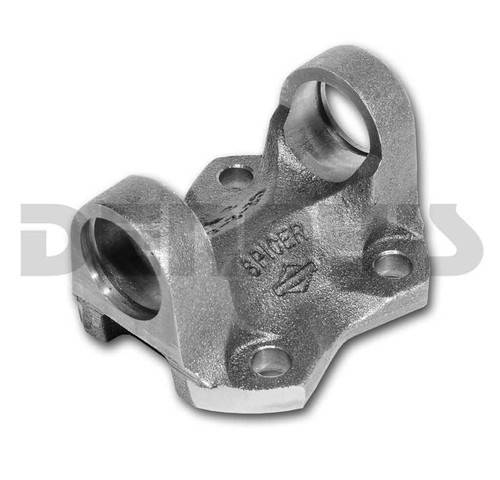

DANA SPICER 2-2-349 Flange Yoke 1310 Series
Part Number:
2-2-349


UPC:
023913232382
Your Cost $69.82 Sale Price $58.48
You Save $11.34
STATUS:  IN STOCK

DANA SPICER 2-2-349

1310 Series Flange Yoke




Spicer
DANA SPICER 2-2-349 Flange Yoke 1310 Series
DANA SPICER 2-2-349 Flange Yoke 1310 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $69.82 Sale Price $58.48
You Save $11.34

DANA SPICER 2-2-349

1310Series Flange Yoke

  • A - Flange or Swing Diameter = 3.625 inches OD Pilot Diameter
  • B - Bolt Circle Diameter = 2.875 inches
    • Bolt Hole Diameter = 0.380 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = Does not apply
    • Center Pilot = Does not apply
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.375 inches
  • X - 1.840 inches
  • Y - 2.190 inches
  • Special Notes: Typically used to replace Dodge ball and trunion





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-349 Flange Yoke 1310 Series

DANA SPICER 2-2-349 Flange Yoke 1310 Series
