DANA SPICER 2-2-1369 Flange Yoke 1330 Series
2-2-1369
DANA SPICER 2-2-1369
- 1330 Series flange yoke
- Spicer 2-2-1369 has been discontinued by the manufacturer and is no longer available
- Replaced by NEAPCO N2-2-1369
Not Available
Pricing:
$39.55
Description
DANA SPICER 2-2-1369
- 1330 Series flange yoke
- Spicer 2-2-1369 has been discontinued by the manufacturer and is no longer available
- Replaced by NEAPCO N2-2-1369

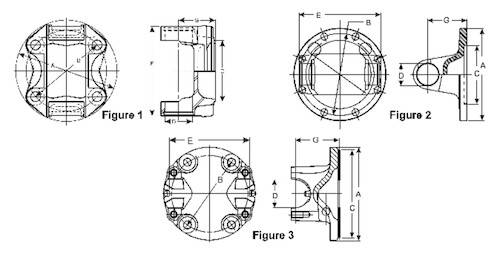

- A - Flange or Swing Diameter = 5.250 inches
- B - Bolt Circle Diameter = 4.250 inches
- Bolt Hole Diameter = 0.500 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2 inches
- Center Pilot = FEMALE
- Series = 1330
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.625 inches
- D - U-Joint Bearing cap diameter = 1.062 inches
- G - Center of u-joint bore to Face of flange = 1.625 inches
- X - 3 inches
- Y - 3 inches
- Special Notes: DISCONTINUED SEE NEAPCO N2-2-1369
Details
- 2-2-1369
- 2-2-1369
- Spicer
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H6.0000” x L2.0000”
