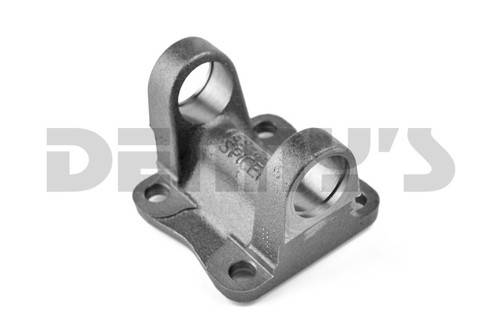

DANA SPICER 2-2-1309 Flange Yoke 1310 Series
2-2-1309
DANA SPICER 2-2-1309
1310 Series Flange Yoke
Limited Supply: only 3 remaining
Pricing:
$46.95
Description
DANA SPICER 2-2-1309
1310Series Flange Yoke
- A - Flange or Swing Diameter = 4.140 inches
- B - Bolt Circle Diameter = 3.198 inches
- Bolt Hole Diameter = 0.400 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 1.968 inches
- Center Pilot = MALE
- Series = 1310
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.219 inches
- D - U-Joint Bearing cap diameter = 1.062 inches
- G - Center of u-joint bore to Face of flange = 1.781 inches
- X - 2.265 inches
- Y - 2.265 inches
- Special Notes: 10 mm bolt holes, equally spaced
Details
- 2-2-1309
- 2-2-1309
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W5.0000” x H5.0000” x L2.0000”
