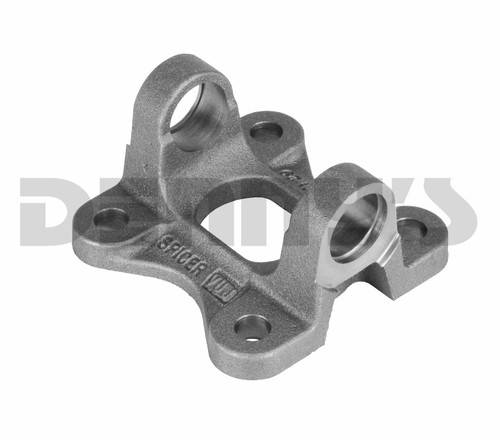

DANA SPICER 2-2-01474 Flange Yoke 1330 Series
2-2-1474
DANA SPICER 2-2-01474
1330 Series Flange Yoke
Limited Supply: only 1 remaining
Pricing:
$61.95
Description
DANA SPICER 2-2-01474
1330Series Flange Yoke
- A - Flange or Swing Diameter = 5.423 inches
- B - Bolt Circle Diameter = 4.271 inches
- Bolt Hole Diameter = 0.487 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.436 inches
- Center Pilot = FEMALE
- Series = 1330
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.625 inches
- D - U-Joint Bearing cap diameter = 1.062 inches
- G - Center of u-joint bore to Face of flange = 1.618 inches
- X - 3 inches
- Y - 3 inches
- Special Notes: Bolts holes are equally spaced
Details
- 2-2-1474
- 2-2-1474
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W5.0000” x H5.0000” x L2.0000”
