DANA SPICER 170-2-49 Flange Yoke SPL170 Series
170-2-49

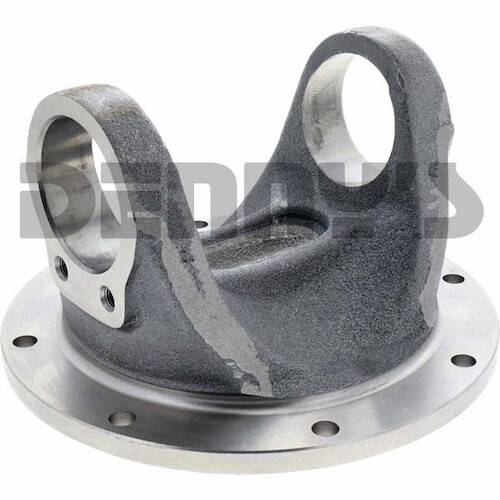

DANA SPICER 170-2-49
SPL170 Series Flange Yoke
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$223.95
Description
DANA SPICER 170-2-49
SPL170 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- B - Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.378 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 7.750 inches
- Center Pilot = MALE
- Series = SPL170
- U-Joint Width = 6.026 inches
- D - U-Joint Bearing cap diameter = 2.166 inches
- G - Center of u-joint bore to Face of flange = 3.208 inches
- Special Notes: Mates with standard 1710 series companion flange
Details
- 170-2-49
- 170-2-49
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 15.0 lbs.
- W8.0000” x H5.0000” x L8.0000”
