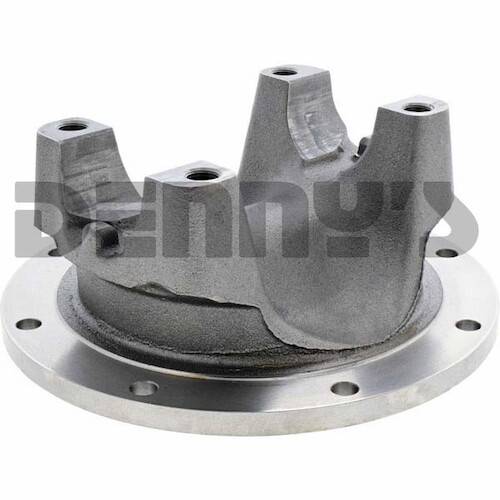

DANA SPICER 140-2-39-1 Flange Yoke SPL140 Series
140-2-39-1
DANA SPICER 140-2-39-1
SPL140 Series Flange Yoke
Not Available
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$216.51
Description
DANA SPICER 140-2-39-1
SPL140 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- B - Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.381 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 6.437 inches
- Center Pilot = MALE
- Series = SPL140
- U-Joint Width = 5.028 inches
- D - U-Joint Bearing cap diameter = 1.937 inches
- G - Center of u-joint bore to Face of flange = 2.952 inches
- Special Notes: 1/2 ROUND PART WITH SPECIAL GMC BOLT HOLE SIZE
Details
- 140-2-39-1
- 140-2-39-1
- Spicer
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 13.0 lbs.
- W8.0000” x H4.0000” x L8.0000”
