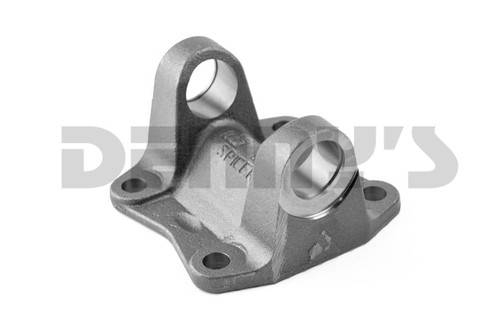

DANA SPICER 3-2-429 Flange Yoke 1410 Series

SKU: 3-2-429

DANA SPICER 3-2-429

1410 Series Flange Yoke

Limited Supply: only 6 remaining

Pricing: $56.25

Description

DANA SPICER 3-2-429

1410 Series Flange Yoke

A - Flange or Swing Diameter = 5.875 inches
B - Bolt Circle Diameter = 4.750 inches
- Bolt Hole Diameter = 0.500 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
C - Center Pilot Hole Diameter = 3.750 inches
- Center Pilot = MALE
Series = 1410
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.187 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
G - Center of u-joint bore to Face of flange = 2 inches
X - inches = 3.053
Y - inches = 3.639
Special Notes: Rectangular bolt pattern
