DANA SPICER 3-2-299 Flange Yoke 1410 Series
Part Number:
3-2-299


UPC:
023913235826
Your Cost $232.73 Sale Price $196.06
You Save $36.67
STATUS:  FACTORY DIRECT TO YOU

DANA SPICER 3-2-299

1410 Series Flange Yoke




Spicer

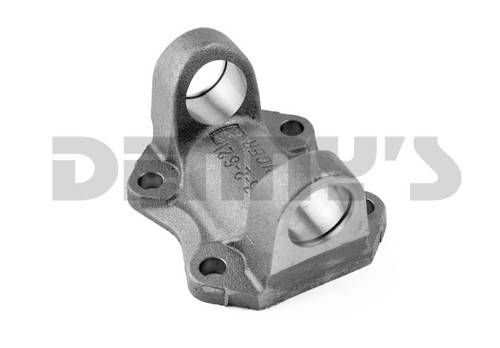

DANA SPICER 3-2-299 Flange Yoke 1410 Series
DANA SPICER 3-2-299 Flange Yoke 1410 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $232.73 Sale Price $196.06
You Save $36.67

DANA SPICER 3-2-299

1410 Series Flange Yoke

  • A - Flange or Swing Diameter = 4.625 inches
  • B - Bolt Circle Diameter = 3.750 inches
    • Bolt Hole Diameter = 0.438 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.750 inches
    • Center Pilot = FEMALE
  • Series = 1410
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.688 inches
  • X - inches
  • Y - inches
  • Special Notes:





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-299 Flange Yoke 1410 Series

DANA SPICER 3-2-299 Flange Yoke 1410 Series
