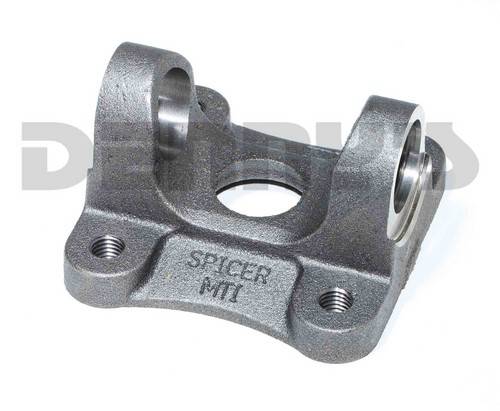

DANA SPICER 3-2-1699 Flange Yoke 1350 Series

DANA SPICER 3-2-1699

1350 Series Flange Yoke

• A - Flange or Swing Diameter = 5.250 inches
• B - Bolt Circle Diameter = 4.250 inches
  • Bolt Hole Diameter = 0.470 inches
  • Bolt Holes = 4
  • Bolt Holes = THREADED
• C - Center Pilot Hole Diameter = 2.680 inches

  • Center Pilot = FEMALE
• Series = 1350
  • Outside Snap Ring Style
  • U-Joint Width between snap rings = 3.625 inches
  • D - U-Joint Bearing cap diameter = 1.187 inches
• G - Center of u-joint bore to Face of flange = 1.625 inches
• X - inches
• Y - inches
• Special Notes:
