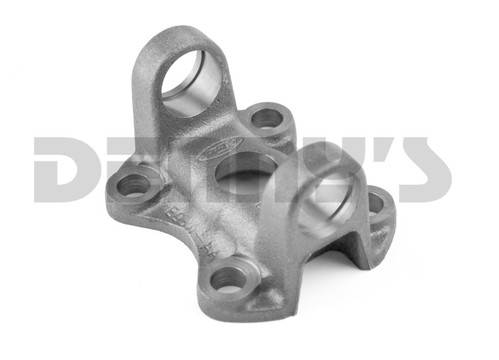

DANA SPICER 2-2-949 Flange Yoke 1330 Series
Part Number:
2-2-949


UPC:
023913229948
Your Cost $1.00
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

DANA SPICER 2-2-949

1330 Series Flange Yoke




Spicer
DANA SPICER 2-2-949 Flange Yoke 1330 Series
DANA SPICER 2-2-949 Flange Yoke 1330 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $1.00

>>>>> FINAL SALE:  This part number is a Final Sale ITEM.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

DANA SPICER 2-2-949

1330 Series Flange Yoke

  • A - Flange or Swing Diameter = 4.469 inches
  • B - Bolt Circle Diameter = 3.500 inches
    • Bolt Hole Diameter = 0.484 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2 inches
    • Center Pilot = FEMALE
  • Series = 1330
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - 2.500 inches
  • Y - 2.500 inches
  • Special Notes: BOLT HOLES EQUALLY SPACED. FITS FORD CAR AND LIGHT TRUCK APPLICATIONS
Flange Yokes - Flange Yokes Model/Part #:  2-2-949
A.) Flange or Swing Dia. 4.469
B) Bolt Circle Dia. 3.500
Bolt Hole Dia. (NOM) .484-D
Number of Bolt Holes 4
C) Pilot Dia. M=male F=female 2.000-F
G) Flange Face to C/L 1.625
Figure 1







Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-949 Flange Yoke 1330 Series

DANA SPICER 2-2-949 Flange Yoke 1330 Series
