DANA SPICER 3-2-1699 Flange Yoke 1350 Series Threaded Mounting Holes 2.680 female pilot
Part Number:
3-2-1699


UPC:
023913233617
Your Cost $61.12 Sale Price $54.95
You Save $6.17
STATUS:  IN STOCK

DANA SPICER 3-2-1699

1350 Series Flange Yoke




Spicer

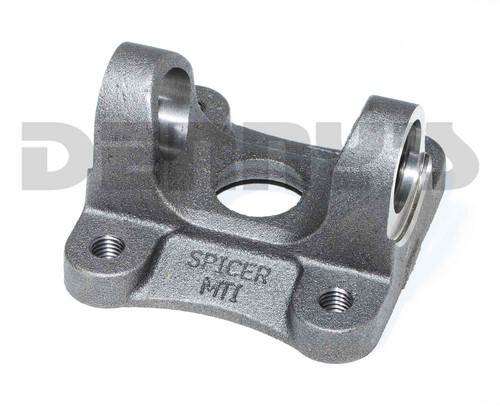

DANA SPICER 3-2-1699 Flange Yoke 1350 Series Threaded Mounting Holes 2.680 female pilot
DANA SPICER 3-2-1699 Flange Yoke 1350 Series Threaded Mounting Holes 2.680 female pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $61.12 Sale Price $54.95
You Save $6.17

DANA SPICER 3-2-1699

1350 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.250 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = .470 inches
    • Bolt Holes = 4
    • Bolt Holes = THREADED
  • C - Center Pilot Hole Diameter = 2.680 inches
    • Center Pilot = FEMALE
  • Series = 1350
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - 3 inches
  • Y - 3 inches
  • Special Notes: 12mm threaded holes equally spaced





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-1699 Flange Yoke 1350 Series Threaded Mounting Holes 2.680 female pilot

DANA SPICER 3-2-1699 Flange Yoke 1350 Series Threaded Mounting Holes 2.680 female pilot

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge
