DANA SPICER 2-3-8841KX - Slip Yoke 1310 series 16 spline 6.562 inches with PRESS ON SEAL
2-3-8841KX
DANA SPICER 2-3-8841KX

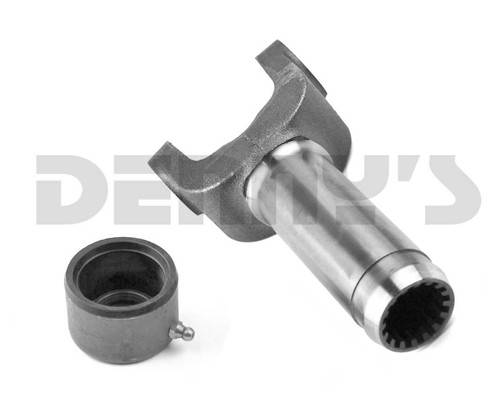

1310 series Slip Yoke with PRESS ON SEAL....Grease fitting in seal
Fits Jeep FRONT with 1 1/4 inch tube diameter Spline and Slip Style Driveshaft
- 16 splines and 1.250 inch Spline Diameter
- 6.562 inches from center of u-joint bearing cap to end of yoke with seal removed.
Not Available
Pricing:
$73.65
Description
DANA SPICER 2-3-8841KX
1310 series Slip Yoke with PRESS ON SEAL....Grease fitting in seal
Designed for 1310 series u-joint. See bottom of this page for 1310 series u-joints
- 3 7/32 inches between snap rings
- 1 1/16 diameter bearing caps
- Fits 16 spline driveshaft with 1.250 spline Diameter ....
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
- Includes PRESS ON seal
- 6.562 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
Details
- 2-3-8841KX
- 2-3-8841KX
- Spicer
- Temporarily Not Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.8 lbs.
- W6.0000” x H5.0000” x L8.0000”
