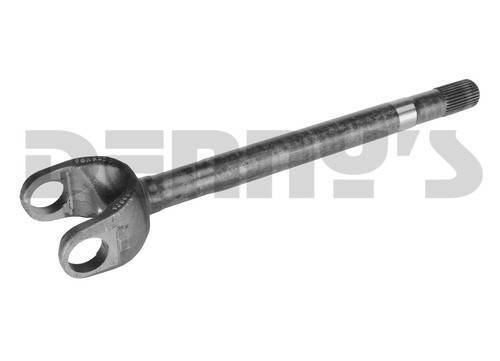

Dana Spicer 75594X LEFT SIDE INNER Axle Shaft 30 splines fits 1994 to 1999 Dodge RAM 2500 and RAM 3500 with DANA 60 DISCONNECT front axle

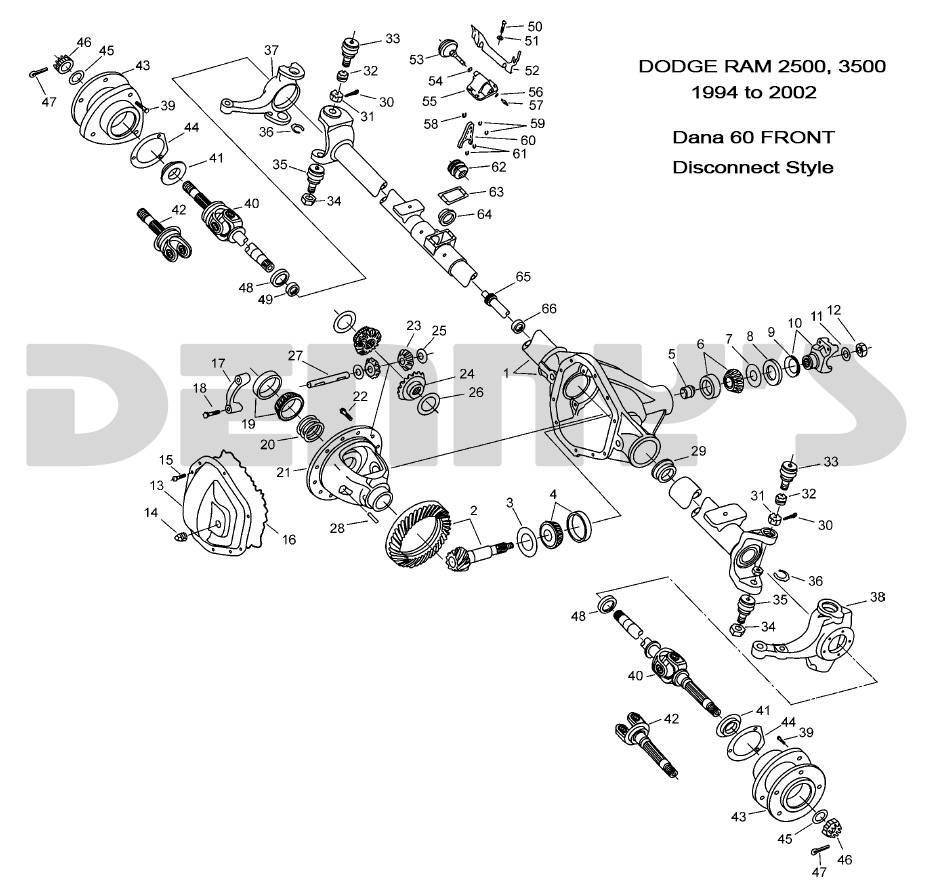

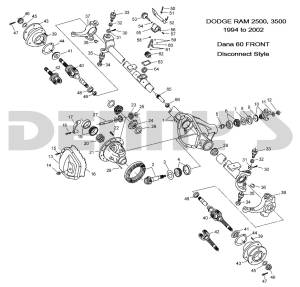

Diagram Number: 40-IN
75594X
DANA SPICER 75594X
INNER AXLE SHAFT
- Fits LEFT SIDE - Drivers Side
- Dodge RAM 2500 and RAM 3500 with Dana 60 Disconnect style front axle
- 1994, 1995, 1996, 1997, 1998, 1999
- 30 splines
DIMENSIONS
- C1 = 1.31 inch diameter with 30 Splines
- C = 18.59 inches
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Use with Spicer SPL55-3X NON greaseable or SPL55-4X Greaseable Universal Joint...See bottom of this page
Not Available
Pricing:
$147.60
Description
DANA SPICER 75594X
INNER AXLE SHAFT
- Fits LEFT SIDE - Drivers Side
- Dodge RAM 2500 and RAM 3500 with Dana 60 Disconnect style front axle
- 1994, 1995, 1996, 1997, 1998, 1999
- 30 splines
DIMENSIONS
- C1 = 1.31 inch diameter with 30 Splines
- C = 18.59 inches
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Use with Spicer SPL55-3X NON greaseable or SPL55-4X Greaseable Universal Joint...See bottom of this page
Details
- 75594X
- 75594X
- Spicer
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 12.0 lbs.
- W6.0000” x H5.0000” x L20.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
