Additional Images

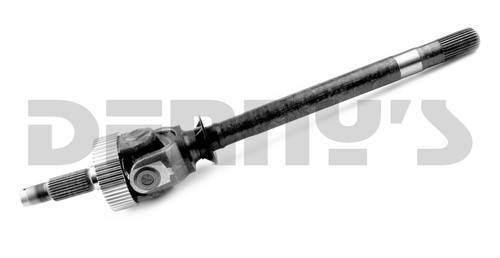

Dana Spicer 75815-1X LEFT SIDE Axle Assembly fits DANA 30 Disconnect Front 1993 to 1996 Jeep WRANGLER YJ with ABS replaces old number 75525-1X axle - FREE SHIPPING

75815-1X

Dana Spicer 75815-1X

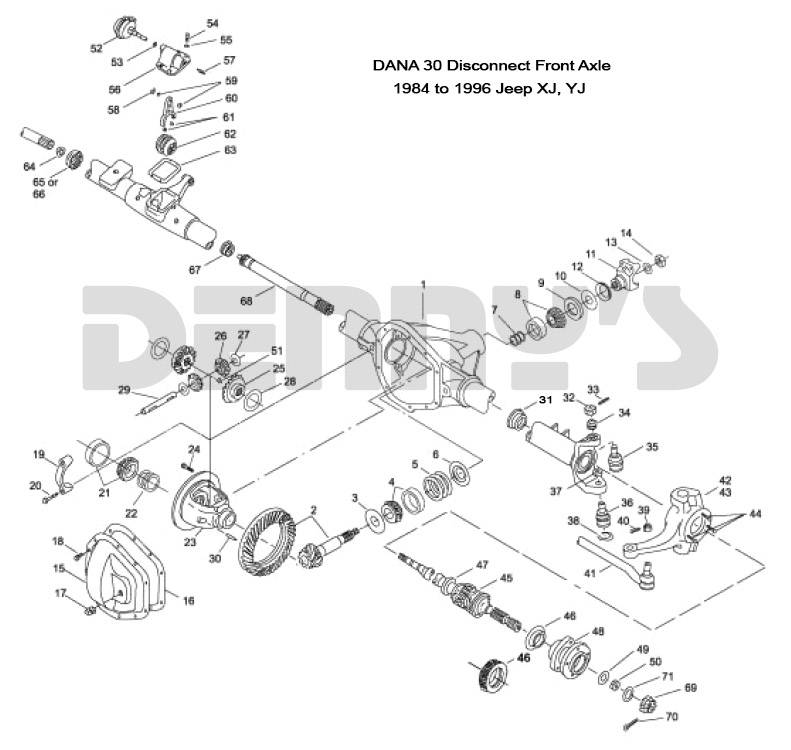

COMPLETE AXLE ASSEMBLY for Jeep Dana 30 DISCONNECT Front

Fits LEFT SIDE - Drivers Side - WITH ABS

  • Jeep Wrangler YJ with Dana 30 DISCONNECT front axle and WITH ABS
    • 1993, 1994, 1995, 1996

DIMENSIONS

  • A = 22.68 inches
  • B = 6.11 inches - 27 SPLINE OUTER
  • C = 16.57 inches - 27 SPLINE INNER

COMPONENT PARTS of 75815-1X

  • Outer Stub Axle shaft
  • Universal Joint
  • Outer axle ABS Tone Ring
  • Inner Axle shaft
  • Inner axle dust shield

Completely assembled and ready to install

  • Comes with 5-760X Dana Spicer universal joint





FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.



Limited Supply: only 5 remaining
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing: $385.95

Customize Your Item

- -
 * required
Qty:
FREE SHIPPING ON PARTS ORDERS OVER $99

Description

Dana Spicer 75815-1X

COMPLETE AXLE ASSEMBLY for Jeep Dana 30 DISCONNECT Front

Fits LEFT SIDE - Drivers Side - WITH ABS

  • Jeep Wrangler YJ with Dana 30 DISCONNECT front axle and WITH ABS
    • 1993, 1994, 1995, 1996

DIMENSIONS

  • A = 22.68 inches
  • B = 6.11 inches - 27 SPLINE OUTER
  • C = 16.57 inches - 27 SPLINE INNER

COMPONENT PARTS of 75815-1X

  • Outer Stub Axle shaft
  • Universal Joint
  • Outer axle ABS Tone Ring
  • Inner Axle shaft
  • Inner axle dust shield

Completely assembled and ready to install

  • Comes with 5-760X Dana Spicer universal joint





FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.



Details

  • 75815-1X
  • 75815-1X
  • Spicer
  • 0
  • 0
  • Available
  • New

Shipping Information

  • Item Requires Shipping
  • 18.0 lbs.
  • W6.0000” x H5.0000” x L23.0000”
  • FREE SHIPPING ON PARTS ORDERS OVER $99
  • >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
