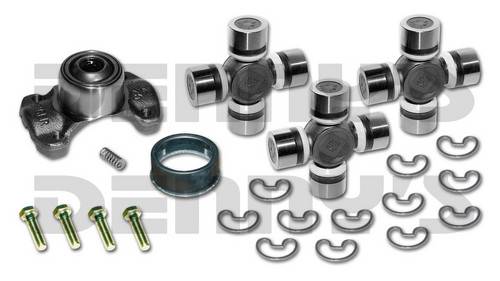

CV-544-3 Rebuild Kit for JEEP with OEM 1310 series NON GREASEABLE Front/Rear CV Driveshaft includes Spicer 211544X NON Greaseable CV Centering Yoke (3) 5-1310X NON greaseable U-Joints (1) 2-86-418 Rubber Boot (4) Bolts

CV-544-3

Jeep CV Driveshaft Centering Yoke 1310 Series Rebuild Kit with 3 U-Joints

Use on OEM NON Greaseable 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint

• Includes (1) Dana Spicer 211544X Centering Yoke....NON GREASEABLE
• Includes (3) Dana Spicer 5-1310X NON-GREASEABLE Universal Joints
• Includes (4) Grade 8 Bolts
• Includes (1) Spring
• Includes (1) 2-86-418 Rubber Boot

• Centering Yoke Fits 1310 Series Universal Joint
  • Dimension between locating tabs on centering yoke is (3.219 inches) 3 7/32 inches
  • Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap

Fits Jeep Models with OEM NON Greaseable 1310 series CV Driveshaft Front/Rear

• DOES NOT fit 2003 to 2006 Jeep TJ RUBICON Models with 1330 series front driveshaft
• DOES NOT fit aftermarket 1310 CV Driveshaft with FLAT FLANGE at TRANSFER CASE
• DOES NOT fit OEM or aftermarket 1310 CV Driveshafts originally built with a Greaseable CV Centering yoke
