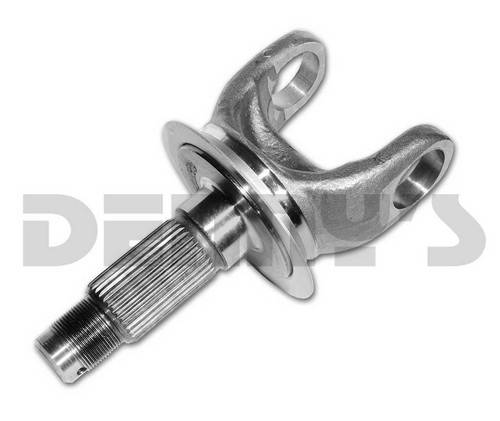

Dana Spicer 80375 OUTER STUB AXLE shaft 33 Spline fits 2000 to 2002 Dodge Ram 2500HD and 3500 with Dana 60 front axle

Part #:

80375

Your Cost $146.00

Sorry, Not Available Right Now

Click here to be notified when this item is available

DANA SPICER 80375

OUTER AXLE SHAFT
Replaces old Dana Spicer part number 49569
Fits Dodge Ram 2500HD & 3500 4x4 with Dana 60 Front axle
- 2000, 2001, 2002
33 Spline
Fits both right and left side

DIMENSIONS

Dimension "B1" = 1.41 inch diameter with 33 Splines
Dimension "B" = 7.39 inches
Use with Spicer SPL55-3X Non Greaseable or SPL55-4X greaseable... See bottom of this page
- (replaces part number 5-806X) Universal Joint
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Outer Axle Nut and Washer available...please see the bottom of this page to purchase.

Fits the following axle Bill of Materials numbers: 610836, 610837, 610838, 610899, 610941, 610942, 610054, 610055, 610056, 611075, 611076, 611077, 611153, 611154, 611155, 611173, 611174, 611176, 611185-2

Dana Spicer 80375 OUTER STUB AXLE shaft 33 Spline fits 2000 to 2002 Dodge Ram 2500HD and 3500 with Dana 60 front axle

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $146.00

DANA SPICER 80375

OUTER AXLE SHAFT
Replaces old Dana Spicer part number 49569
Fits Dodge Ram 2500HD & 3500 4x4 with Dana 60 Front axle
- 2000, 2001, 2002
33 Spline
Fits both right and left side

DIMENSIONS

Dimension "B1" = 1.41 inch diameter with 33 Splines
Dimension "B" = 7.39 inches
Use with Spicer SPL55-3X Non Greaseable or SPL55-4X greaseable... See bottom of this page
- (replaces part number 5-806X) Universal Joint
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Outer Axle Nut and Washer available...please see the bottom of this page to purchase.

image/jpeg

Dana Spicer 80375 OUTER STUB AXLE shaft 33 Spline fits 2000 to 2002 Dodge Ram 2500HD and 3500 with Dana 60 front axle

You May Also Need These Parts to Complete the Job

Dana Spicer 46085 Nut and 45523 Washer set 1994 -2002 Dodge Ram 1500, 2500, 3500 Outer Axle 4x4 with Dana 44 and Dana 60 Front Part#: 46085/45523 $9.50	DANA SPICER SPL55-3X Universal Joint DANA 60 4x4 Front Axle U-Joint replaces 5-806X Part#: SPL55-3X $38.95
DANA SPICER SPL55-4X Universal Joint DANA 60 4x4 Front Axle U-Joint GREASABLE Part#: SPL55-4X $48.10
