Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 5-793X fits 2003 to 2006 Jeep TJ Rubicon and Unlimited Rubicon 1330/3R Series Front and Rear Driveshaft Universal Joint at Pinion Yoke NON GREASABLE
Part #:
5-793X
Your Cost $16.95

DANA SPICER 5-793X

  • Jeep TJ Rubicon FRONT Driveshaft Universal Joint at Pinion Yoke
    • 2003, 2004
  • Jeep TJ Rubicon REAR Driveshaft Universal Joint at Pinion Yoke
    • 2003, 2004
  • Jeep TJ Rubicon and Unlimited FRONT Driveshaft Universal Joint at Pinion Yoke
    • 2005, 2006
  • Jeep TJ Rubicon and Unlimited REAR Driveshaft Universal Joint at Pinion Yoke
    • 2005, 2006


Spicer
Dana Spicer 5-793X fits 2003 to 2006 Jeep TJ Rubicon and Unlimited Rubicon 1330/3R Series Front and Rear Driveshaft Universal Joint at Pinion Yoke NON GREASABLE
Dana Spicer 5-793X fits 2003 to 2006 Jeep TJ Rubicon and Unlimited Rubicon 1330/3R Series Front and Rear Driveshaft Universal Joint at Pinion Yoke NON GREASABLE
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $16.95

DANA SPICER 5-793X

  • Jeep TJ Rubicon FRONT Driveshaft Universal Joint at Pinion Yoke
    • 2003, 2004
  • Jeep TJ Rubicon REAR Driveshaft Universal Joint at Pinion Yoke
    • 2003, 2004
  • Jeep TJ Rubicon and Unlimited FRONT Driveshaft Universal Joint at Pinion Yoke
    • 2005, 2006
  • Jeep TJ Rubicon and Unlimited REAR Driveshaft Universal Joint at Pinion Yoke
    • 2005, 2006

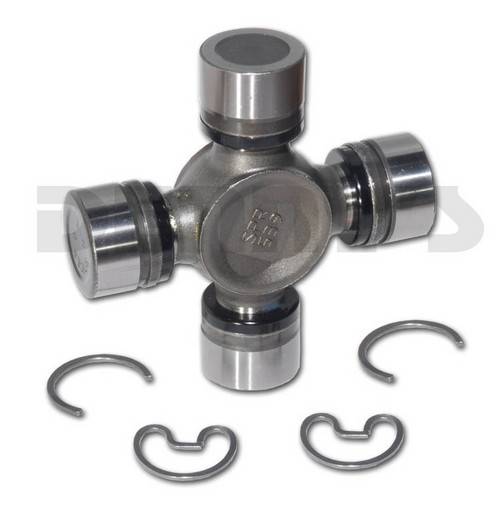

NON GREASEABLE U-Joint

  • 5-793X is a 1330 to 3R Series Combination u-joint

DIMENSIONS

  • 1330 series fits into pinion yoke
    • 3 5/8 inches wide cap to cap
    • 1.062 bearing caps
  • 3R series fits into driveshaft
    • 2.556 inches (approx 2  9/16) wide between inner surfaces where "C" clips lock in
    • 1.125 bearing caps
    • Inside "C" clip locks

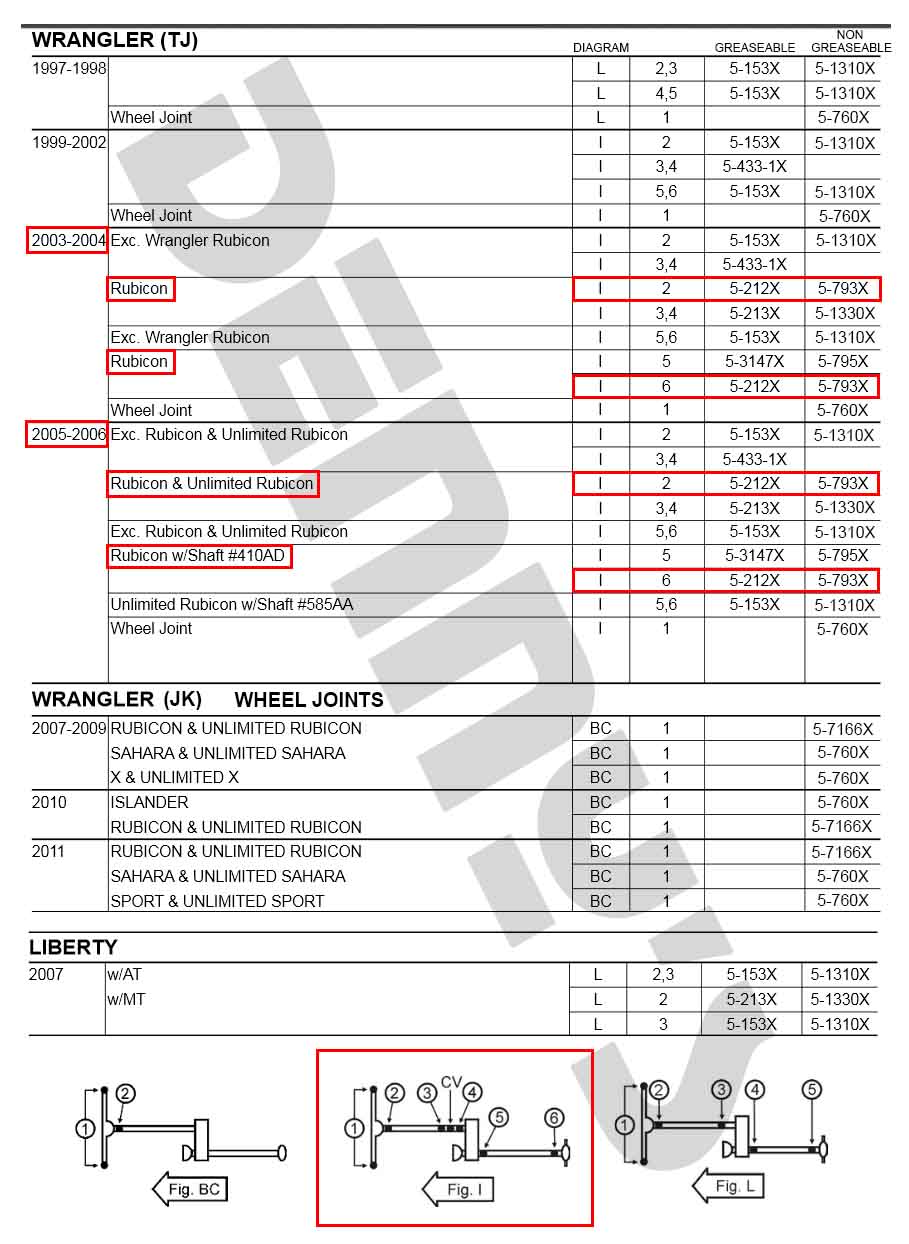

Denny's Driveshafts Spicer u-joint chart for Jeep TJ

Dana Spicer 5-793X fits 2003 to 2006 Jeep TJ Rubicon and Unlimited Rubicon 1330/3R Series Front and Rear Driveshaft Universal Joint at Pinion Yoke NON GREASABLE

Dana Spicer 5-793X fits 2003 to 2006 Jeep TJ Rubicon and Unlimited Rubicon 1330/3R Series Front and Rear Driveshaft Universal Joint at Pinion Yoke NON GREASABLE
