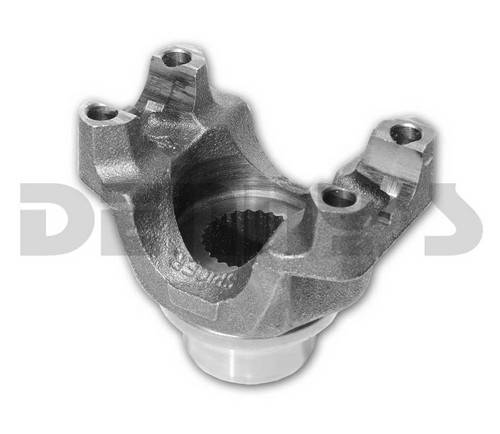

DANA SPICER 2-4-8091X PINION YOKE 1310 Series fits 1967 to 2001 DODGE Ramcharger, W100/150, W200/250, Ram 1500, Ram 2500 with Dana 44 front axle 26 splines U-Bolt Style

Part Number:
2-4-8091X

UPC:

023913235321

Your Cost ~~$54.28~~ Sale Price $49.65

You Save $4.63

STATUS: IN STOCK

DANA SPICER 2-4-8091X

PINION YOKE 1310 Series

Fits 4X4 DODGE Ramcharger, W100/150, W200/250, Ram 1500, Ram 2500

1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001

Dana 44 front axle 26 spline pinion U- Bolt Style

DANA SPICER 2-4-8091X PINION YOKE 1310 Series Fits 1967 to 2001 DODGE Ramcharger, W100, W200, Ram 1500, Ram 2500 with Dana 44 front axle 26 splines U-Bolt Style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$54.28~~ Sale Price $49.65

You Save $4.63

DANA SPICER 2-4-8091X

PINION YOKE 1310 Series

Fits 4X4 DODGE Ramcharger, W100/150, W200/250, Ram 1500, Ram 2500

1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001

Dana 44 front axle 26 spline pinion U- Bolt Style

U-Bolt Set Sold Separately
1310 Series
- universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

DANA SPICER 2-4-8091X PINION YOKE 1310 Series Fits 1967 to 2001 DODGE Ramcharger, W100, W200, Ram 1500, Ram 2500 with Dana 44 front axle 26 splines U-Bolt Style
